Product Description

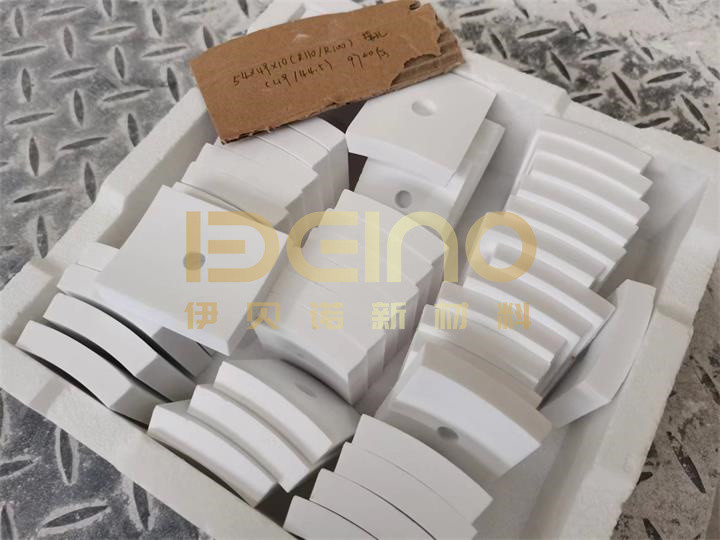

Weldable ceramic tile lined pipe is to weld the wear resistant ceramic to the inner wall of the steel pipe through advanced stud welding technology. The ceramic is made of alumina corundum ceramics with a hardness of HRA88 or more. Compared with ordinary wear-resistant materials, the service life can be extended by 10 times. Main applications Used in limestone transportation, coal powder transportation, slag transportation, cement transportation, etc.
Product parameters
| Items | Specifications |
| Content of alumina | ≥92% | ≥95% |
| Density | ≥3.6 g/cm3 | >3.8g/cm3 |
| Rockwell A hardness | ≥82HRA | ≥85HRA |
| Impact strength | ≥1200 MPA | ≥1500 MPA |
| Fracture toughness | ≥3.8MPa·m1/2 | ≥4.0MPa·m1/2 |
| Vickers hardness | ≥1150HV10 | ≥1200HV10 |
| Bending Strength | ≥290MPa | ≥330MPa |
Company Profile
Hunan Yibeinuo New Material Co., Ltd. has been focusing on the application of wear resistant materials for 15 years. It has a group of experienced technical and management personnel who can conduct product development, design, production, and processing of various wear resistant pipes and equipment according to customer needs.
Products Feature
1. High hardness: The Rockwell hardness of the ceramic Weldable ceramic tile lined pipe is HRA80 90, which is second only to diamond and far exceeds the wear resistance of wear resistant steel and stainless steel.
2. Excellent wear resistance
3. Lightweight: Its density is 3.6 3.9g/cm3, which is only half of that of steel, which can greatly reduce the equipment load.
4. Strong bonding and good heat resistance
5. Wear resistant elbows lined with ceramic pipes to resist impact
6. Long service life
7. Wear resistant elbow lining ceramics that are widely used in the industry
Product Application
Weldable ceramic tile lined pipe is one of the company's products, which are mainly widely used in steel, thermal power, cement, ports, coal, mining, chemical, concrete engineering machinery, chemical, smelting, lithium battery, and other industries
Our Advantages
1. The factory is a manufacturing enterprise dedicated to the production, design research, and development of wear resistant ceramics for 15 years
2. Years of actual industry experience can provide the best and best anti-wear design plan for enterprise equipment
3. The perfect after sales service system allows customers to have no worries
4. For ceramic patch elbows, we adopt the staggered pasting process. The staggered arched patching process is designed to solve the powder and slurry conveying system that is particularly severely worn by the wear resistant ceramic pipes, to form a firm anti wear layer, and the ceramics will not fall off.
Product Tags:
|
|
Impact Resistance Ceramic Lining Pipe Weldable Alumina Ceramic Tile Images
|
